Aero M5 Build complete with pictures


Spartan

Recommended Posts

I've been wanting an AR10 for some time and decided to try the Aero M5 16" upper.  Im looking for a good hog gun that i can be consistent in the 400-600 yard range, maybe stretch to 800 on occasion.  I have an 18" RRA 556 and don't like the longer gun for hunting and Ive read the FPS loss is pretty low on the 308 going from an 18 to 16.


So here is the build list:

Aero M5 16" upper 1/10 twist SS barrel
VG6 Precision Gamma 7.62 muzzle brake
BCM Gunfighter mod 4 CH (had to file it a little bit for clearance on the lower)
Cryptic Coatings 308 BCG in mystic black
Burris PEPR 30mm scope ring with sightron 6-24x50 scope

Aero M5 enhanced lower
Aero LPK
Geissele SSA-E trigger (big improvement over SSA which is on my RRA gun) break is much lighter
Magpul 1.1 MIAD grip (definitely easier to use than the 1.0)
Magpul STR stock in FDE
Anderson 308 buffer tube kit

I know 308 builds can be finicky, especially during break in so i was anxious to get some rounds downrange.   I went back to my farm last weekend to see my son, saw him saturday and thought, ill just shoot tomorrow.  Of course, it rained all day sunday.  Finally at 3pm i said heck with it and took it out in the pouring rain and put a mag downrange.   I had lubed up the BCG with CLP pretty good, stuff was dripping out everywhere (per Aero's instructions).  They said the BCGs are a lot of mass to cycle and they're right about that.

Anyway, it ran flawless, no FTEs or FTFs and even locked back on the last round so Im pretty pleased.  I can't comment on grouping yet.  I was just trying to get the scope half dialed in but i had a few rounds that were pretty tight so I think it's promising.   Im very happy with the VG6 muzzle brake.  It is incredible on reducing recoil and muzzle rise.  This thing does not shoot like a 308 at all, more like a slightly amped up 556.

Here are some pics.  I think my two complaints are the lower not fitting with the BCM CH, they need to shave .001' off it to fit and the color isn't true FDE.  You can see a slight difference in it.

B08BA124-0CC3-4C4B-B0D2-C9963FC35968_zps

D588E6F9-F330-47DE-87C1-7D6049181678_zps

AEEBDCC0-D497-4E59-8099-E67E73AF55CC_zps

E08C4BE0-95A4-4A72-BAC0-911DE463531D_zps

950B3492-C93E-4A04-8BB1-B7EDFD4F6C6F_zps

C988FB15-4625-4421-B512-BAC2B2890830_zps

39AD0CBC-8EA5-4CCC-975E-B14C7D0096E7_zps

CD136E51-07DE-4B86-AA3E-F51EDE180F2B_zps

3440FF90-4582-44ED-A5F8-6E4B9103F695_zps

Link to comment
Share on other sites

  • Replies 55
  • Created
  • Last Reply

Top Posters In This Topic

I know it's overkill but it may turn into my coyote gun too lol... Sometimes they keep going after a 556 if it doesn't expand right.  I think my 1/7 twist barrel is over-spinning the light little hornady vmaxs...



I feel like they would not get up after getting smacked with a .308 147gr Hornady Vmax

Edited by Spartan
Link to comment
Share on other sites

Get yourself some .308 "Accelerator" rounds. Hit them with a 70+ grain pill at over 4k fps!

You'll have to single load them, but it'd be awesome fun to pink mist a yote!





i read these seemed to have horrible accuracy, something to do with the twist rate in most 308 barrels.  Probably just stick with my hornady SST/VMAXs.  That's a chuck 'o lead coming at them.

Link to comment
Share on other sites

College what?. I've only got one small chillren.

I just added it all up and I've got $1704 in it (already had scope and mount laying around). I'm pretty happy with that considering it's all high end parts from the SSA-E trigger, Cryptic BCG, VG6 muzzle brake etc. Those three parts alone are close to $600. So I could've done it for a lot less.

Link to comment
Share on other sites

Like that look brother Spartan <thumbsup> . Seems like you had no issues with the extension tube with BCG locking back on last round ^-^ .Still waiting for my upper.Aero's CS has been good in giving me updates on release.Can't wait.





I used a 308 extension tube (not sure what the difference is) and the Aero LPK (i think they have one or two semi-proprietary parts).  After all the weird stories I've read i just wanted to start with getting it running.  I was pleasantly surprised.  Ive had two mags through it without a single issue.  BCG locks back with pmags.



What is taking Aero so long with your upper?  Mine shipped like two days after i ordered it.

Link to comment
Share on other sites

Weird, i thought i had ordered mine mid to end of sale.  I know i researched it for a day or two before ordering.  I ordered some shoot n see targets and plan to see how it groups this weekend.



Ive got to get some bags or a mount.  any recommendations on what is the best way to go?

Link to comment
Share on other sites

  • 3 weeks later...

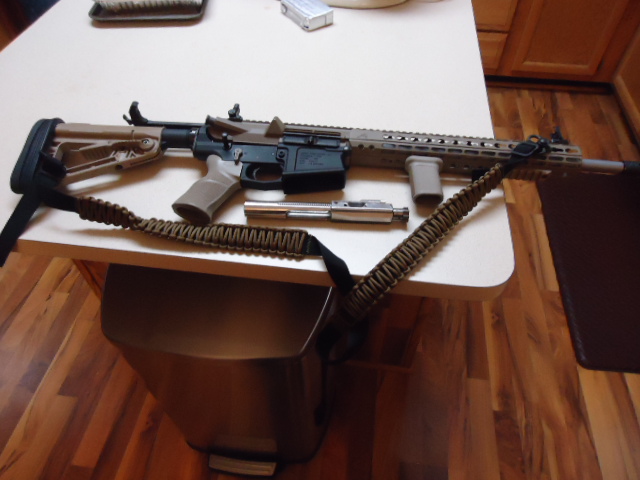

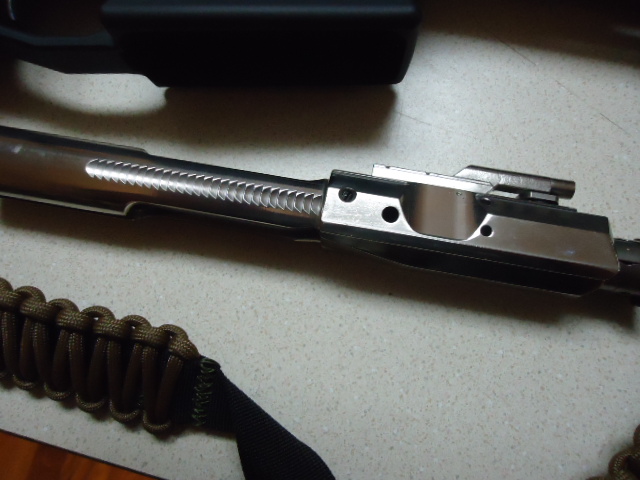

Finally came : Rodgers super stock w/extended butt pad from Rodgers to make it stickier,Tac-Ops CH,MagPul pro flip ups,BAD selector in FDE [should have been short throw but is 90* gonna call about that],APeg grip from LaRue [that needed a little grinding on heel to fit up tighter,was about 3/16 low,BCM keymod verticle grip,BCM QD on handguard,BCM keymod 5 slot rail on handguard @ 6:00 and brother Jacobs sling.Brother Ron turned me on to an Armalite mil-spec tube and I have the 1095 spring coming soon.The BCG in Nickel Boron is slick as whale $hit,for my trouble Aero just hit me for a $7.00 upcharge and they threw in a tee shirt.Aero CS was outstanding.Haven't put in Mec armor trigger yet.Going to run it stock to see if there are any issues before chasing my tail looking for problems.Got the Seeking Percision ATC blasted SS to blend in with barrel from primary arms for $104.00 w/discount.After initial burn in it will be trimed to 14.5 w/target crown.Also going to paint lower to match.Thanks to all for ideas.Brothers Spartan and Tom were a big help.Brother Ron as always I can count on you.  :hethan:  Happy 4th of July to all and you'r families.God bless America.

post-12375-0-87283100-1435958139_thumb.j

post-12375-0-46727300-1435958151_thumb.j

Edited by unforgiven
Link to comment
